145kw Auxiliary Engine Power Diesel Engine Cutter Suction Dredger with Hydraulic System

Model NO. : QHCSD-128

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 2 Year

After-sales Service : Lifelong

Total Length : 31.1

Total Width : 5.5m

Total Depth : 1.48m

Total Weight : 90t

Main Engine Brand/Power : Cummins /456kw

Auxiliary Engine Power : 145kw

Pump Size : 250ND

Head : 53m

Dredging Depth : 8m

Discharge Distance : 1000m

Discharge Pipe Diameter : 350mm

Cutter Head Power : 64kw

Anchor Boom Length : 9m

Cutter Head Diameter : 1200mm

Total Fuel Consumption : 67kw

Transport Package : in Bulk

Specification : Capacity 300m3/h

Trademark : Set Sail

Origin : China

HS Code : 895100000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 550.00cm * 150.00cm

Package Gross Weight : 85000.000kg

Lead Time : 40 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Cast Iron Cyclone

Samples : US$ 5000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Diesel engine hydraulic cutter suction dredger with water flow 1500m3

1.Parameter of 10 inch cutter suction dredger :

Dredging depth	8m
Capacity	300m3
Discharge distance	1000m
Draft	0.8m
Total weight	90t
Total length	31.1m
Total width	5.5m
Total hight	1.48m
Main pump size	250ND
Water flow	1500m3
Head diameter	1450mm
Speed	11/22/33
Discharge distance pipe diameter	350mm
Main engine power/brand	456kw
Auxiliary engine power /brand	122kw
Pump Gearbox brand	Fada
Speed ratio	2:1
Hydraulic gearbox brand	Fada
Cutter head diameter	1450mm
Cutter head power	64kw
Spud diameter /wall thickness	377mm*16mm
Spud Length	11.5m
Spud weight	3.42t
swing winch wire rope diameter	20m
Lifting winch wire rope diameter	20mm
trolley moveing distance	6m
Oil cylinder diameter	160mm
Hydraulic system brand	Rexroth/Huade
Anchor weight	250kg

Set Sail dredgers are known for their high efficiency, robust construction, unbeatable economies of scale and lower operating costs, with the reliability and ease of use for operating in all conditions. The latest series is designed to be even more sustainable, safer and efficient.

Their modular construction means they are easy to transport and can be commissioned quickly at dredging site. They can be delivered with a complete and integrated package of equipment and service, including work boats, spare parts, training, dredging consultancy and maintenance support.

2.Product shows :

145kw Auxiliary Engine Power Diesel Engine Cutter Suction Dredger with Hydraulic System

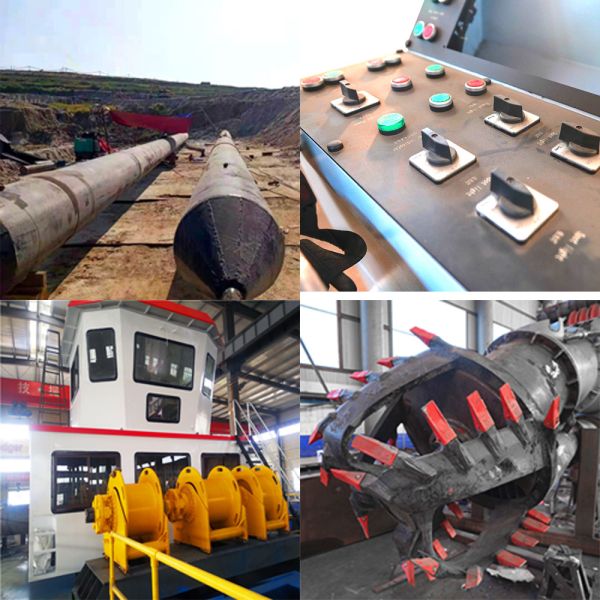

3.Show more detailed :

145kw Auxiliary Engine Power Diesel Engine Cutter Suction Dredger with Hydraulic System

4.Cutter suction dredger feature:

Diesel engine	Normally cummins on dredger Cater .Weichai Yuchai and other can available
Cutter head	Generally drive power hydraulic . Electric power cutter head can offer
Generator set	Cummins brand generator set Weichai brand others can available
Hydraulic system	Hydraulic control system from Germany Rexroth
PLC system	PLC adopts advanced system from Germany Siemens

5.Function of cutter suction dredge :

1	Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project
2.	Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project
3.	Cutter suction dredger can match the mining machinery to get the gold and diamond etc.
4.	Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project
5.	Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site.

6.Cutter suction dredger produce packing and shipment:
7.Question for reply:

How many water flow is the cutter suction dredger ?

2. How many maximum dredging depth ?

3.How many kilo meter is your discharge distance ?

8.Our service :

Free dredger consultation and free product drawings
Customize dredgers based on the client's actual dredging needs
On-site visits and factory visit services provided by SetSail
Arrange 2-3 Set Sail senior engineer and technicians to enter the working site within 36 hours
Free professional assembly, training and operating to make sure dredger operates smoothly
1-year warranty and Lifetime technical assistance
Sign after-sales service agreement with Set Sail clients
Offer spare parts at a discounted price
On-site parts available
Set Sail company require responsible Sales team, design team, manufacture team available 24/7 to best serve clients

9.FAQ:
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.

Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.

Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.
